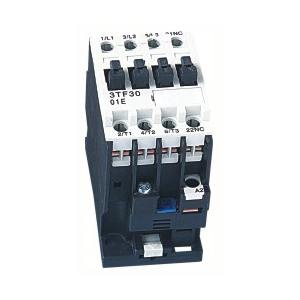

型号Type
|
3TF30
|
3TF31
|
3TF32
|
3TF33
|
||
|
额定绝缘电压（V）Rated insulation voltage
|
690
|
690
|
690
|
690
|
||
|
额定工作电流(380V)(A)
Rated operational current(380V) |
AC-3
|
9
|
12
|
16
|
22
|
|
|
AC-4
|
3.3
|
4.3
|
7.7
|
8.5
|
||
|
可控电机功率（KW） Rated outputs of three-phase motors at 50Hz |
AC-3 AC-4 |
230/220V
|
2.4
|
3.3
|
4
|
5.5
|
|
400/380V
|
4
|
5.5
|
7.5 |
11
|
||
|
500V
|
5.5
|
7.5
|
9
|
11
|
||
|
690/660V
|
5.5
|
7.5
|
11
|
11
|
||
|
1000V
|
-
|
-
|
-
|
-
|
||
|
400/380V
|
1.48/1.4
|
2/1.9
|
3.5
|
4
|
||
|
690/660V
|
2.54/2.4
|
3.45/3.3
|
6
|
6.6
|
||
|
辅助触头约定发热电流(A)
Conventional thermal current of auxiliary contacts |
10
|
10
|
10
|
10
|
||
|
辅助触头额定工作电流（A）Rated operational current of auxiliary contacts
|
AC-15
380/220V |
4/6
|
4/6
|
4/6
|
6/10
|
|
|
重量Weight
|
AC0.37
|
AC0.37
|
AC0.45
|
AC0.45
|
||
