产品型号与规格
Product mode No.and specificatiol |
LE1-09 and 12
|
双线绝缘，保护，IP429(3)或者，F659(4)
Double in sulated,protected toIP429(3) or,F659(4) |
|||||||||
|

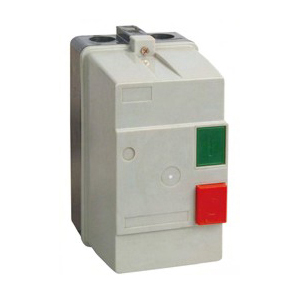

外壳 Enclosure
|
LE1-18 and 25
|
双线绝缘，保护，IP427(3)或者，F557(4)
Double in sulated,protected toIP427(3) or,F557(4) |
|||||||||
|
LE1-32 and 95
|
金属，从Metal,IP55 to 559
|
||||||||||
|
控制(2按钮安装在外壳表面)
Control(2 push buttons moufited on enclosure cover) |
LE1-19 and 95
|
1绿色开始按钮1红色停止按钮起动接钮"O"
1 Green start button ’1’,1Red stop/Teset buttion "O" |
|||||||||
|
连接 Connections
|
LE1-09 and 95
|
电力和控制回路连接
Electricol power and control recircuit connections |
|||||||||
|
标准控制回路电压Standard control circuit voltages
|
|||||||||||
|
Volts
|
24
|
42
|
48
|
110
|
220/230
|
230
|
240
|
380/400
|
400
|
415
|
440
|
|
50/60Hz
|
B7
|
D7
|
E7
|
F7
|
M7
|
P7
|
U7
|
Q7
|
V7
|
N7
|
R7
|
|
******功率
Maximum power AC3 duty(KW) |
额定电流
Rated current A |
外壳类型
Type of enclosure |
极数 Code number
|
适合热继电器 Suitable thermal relay
|
||||||
|
220V 230V
|
380V 400V
|
415V
|
440V
|
500V
|
660V 690V
|
LL
(Long Life) |
NL(3)(Normal life)
|
|||
|
2.2
|
4
|
4
|
4
|
4
|
4
|
9
|
IP42
IP65 |
LE1-D094
LE1-D093 |
|
LR2 D1312
LR2 D1314 |
|
3
|
5.5
|
5.5
|
5.5
|
5.5
|
5.5
|
12
|
IP45
IP55 |
LE1-D124
LE1-D123 |
LE1-D094
LE1-D093 |
LR2 D1316
|
|
4
|
7.5
|
9
|
9
|
10
|
10
|
18
|
IP42
IP55 |
LE1-D188
LE1-D185 |
LE1-D124
LE1-D123 |
LR2 D1321
|
|
5.5
|
11
|
11
|
11
|
15
|
15
|
25
|
IP42
IP55 |
LE1-D258
LE1-D255 |
LE1-D188
LE1-D185 |
LR2 D1322
LR2 D2353 |
|
7.5
|
15
|
15
|
15
|
18.5
|
18.5
|
32
|
IP55
|
LE1-D325
|
LE1-D258
LE1-D255 |
LR2 D2355
|
|
11
|
18.5
|
22
|
22
|
22
|
30
|
40
|
IP55
|
LE1-D405
|
LE1-D325
|
LR2 D3353
LR2 D3355 |
|
15
|
22
|
25
|
30
|
30
|
33
|
50
|
IP55
|
LE1-D505
|
LE1-D405
|
LR2 D3357
LR2 D3359 |
|
18.5
|
30
|
37
|
37
|
37
|
37
|
65
|
IP55
|
LE1-D655
|
LE1-D505
|
LR2 D3361
|
|
22
|
37
|
45
|
45
|
55
|
45
|
80
|
IP55
|
LE1-D805
|
LE1-D655
|
LR2 D3363
LR2 D3365 |
|
25
|
45
|
45
|
45
|
55
|
45
|
95
|
IP55
|
LE1-D955
|
LE1-D805
|
LR2 D3365
|
